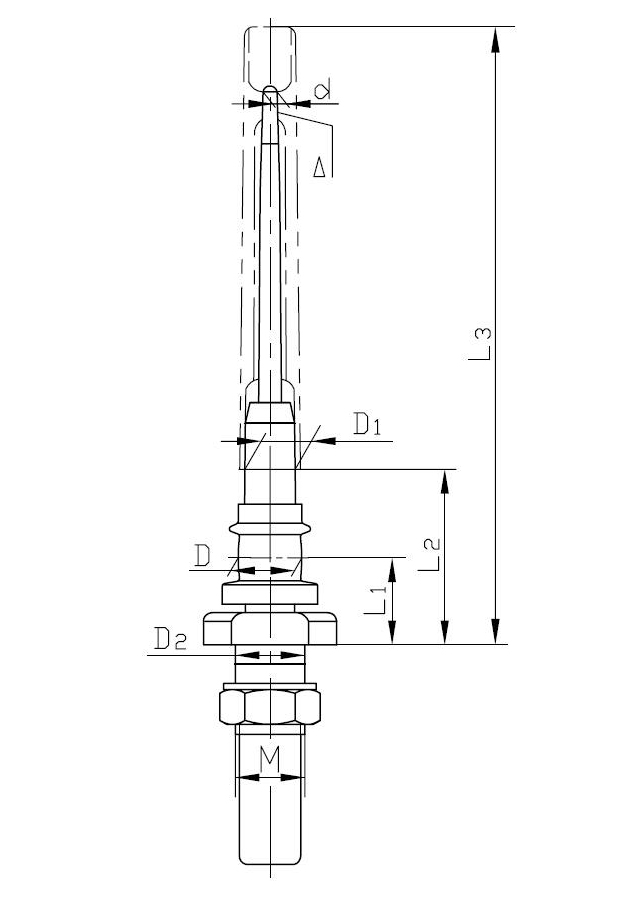

LFD31 series spindle is the new product developed by Liang-fang Company.
The fixing dimension of the whole spindle is the same as that of the ZD41 series spindle.
Steel wharve Min. wharve dia.Ø19mm for saving power.
Metal elastic sleeve connecting construct adopted. Neck bearings are fixed, footstep bushes have the functions of self-centering crosswise and absorbing shock lengthwise.
Firm and reliable elastic unit preventing from burn-out and fatigue.
M25×1.5mm bolster screw improves the strength of suspended bolster house vertically, resulting in running smooth of spindle at high speed. Preventing bolster house from brakeage effectively.
With position step under bolster flange, spindle house and bearing rail hole are coordinated installation. without correcting the center of the spindle.
Max:20000r/min for LFD31 spindle with excellent bobbin.

Kinds and specifications of aluminium spindle adaptor

Kinds and specifications for blade spindle
